- Oil‑Free Pumping Technology
Dry screw operation ensures a clean process environment with zero oil contamination — ideal for sensitive and process‑critical applications. - High Ultimate Vacuum
Achieves deep and stable vacuum levels for demanding industrial processes. - High Pumping Speed Across a Wide Vacuum Range
Maintains consistent performance across varying process conditions and load profiles. - Variable Speed Drive (VSD)
Matches pump speed to real process demand, delivering the lowest energy consumption for the required vacuum level. - Excellent Specific Energy Requirement (SER)
Maximises energy efficiency — more vacuum performance per kilowatt. - Low Rotation Speed
Delivers high flow and deep vacuum at reduced power input, supporting long component life. - Optimised Thermal Management
Advanced water‑cooling circuit ensures stable internal temperatures for reliable continuous operation. - Process‑Resistant Sealing Design
Multi‑stage shaft seals protect critical components from aggressive or contaminated process gases. Optional gas pressurisation and purging available. - Flexible Motor Configuration
Standard water‑cooled motor; air‑cooled option available. Industry‑standard flange connection for ease of maintenance and integration. - Low Life‑Cycle Cost
Fewer wearing parts, reduced service interventions, and lower energy consumption — from day one through the full equipment lifecycle.
The IDS Series is a dry screw vacuum pump designed for process‑critical industrial applications where oil‑free operation, energy efficiency, and reliable continuous performance are essential.
Engineered with advanced screw rotor technology, optimised porting, and high‑integrity sealing, the IDS delivers stable vacuum performance across a wide operating range — without over‑specification or unnecessary complexity.
With Variable Speed Drive (VSD), advanced water‑cooling circuit, and a robust mechanical design built for 24/7 operation, the IDS provides lower energy consumption, reduced maintenance, and predictable long‑term performance.
Available in two models: IDS 850 and IDS 1100.
Engineered for Performance and Reliability
Parameter | IDS 850 | IDS 1100 |
|---|---|---|
Max. pumping speed | 810 m³/h | 1030 m³/h |
Ultimate vacuum | 0.03 mbar | 0.003 mbar |
Motor power | 18.5 kW | 18.5/22 kW |
Max. rotation speed | 3000 rpm | 3600 rpm |
Detailed specifications available on request and in the IDS brochure.

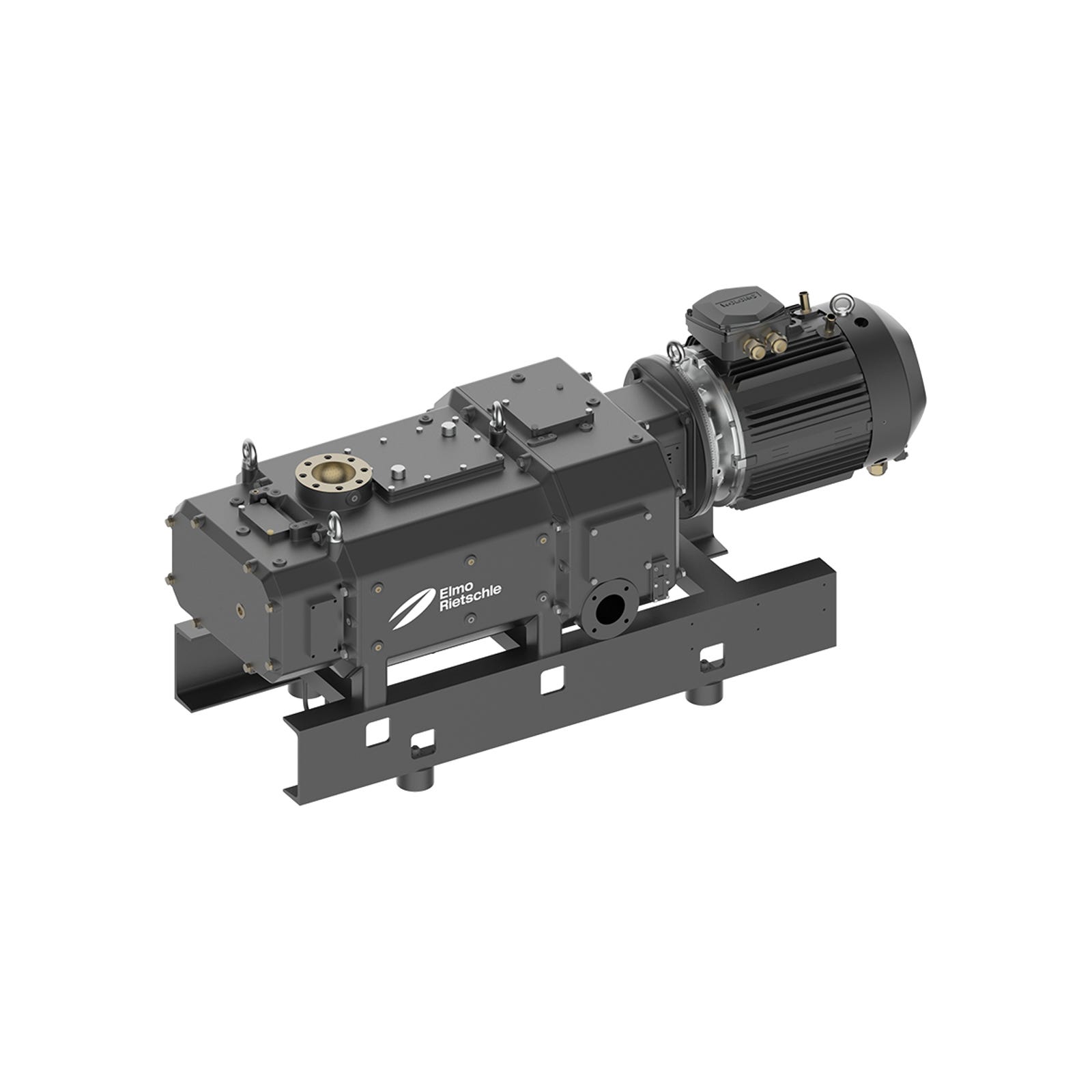

IDS Series Dry Screw Vacuum Pump
Designed for Clean, Process‑Critical Vacuum Applications
- Food & Beverage
Freeze drying (food and pharmaceutical) · Beverage bottle filling · Drying and process vacuum - Glass Coating
Architectural Low‑E glass · Automotive glass coating · PVD and sputter coating · Load‑lock and unload‑lock chambers - Electronics & Coating
Electronics manufacturing · Vacuum coating and metallising · Clean process vacuum environments - Materials & Advanced Manufacturing
Metallurgy and materials processing · Engineered OEM vacuum systems
