Our vacuum pump oil is designed for Elmo Rietschle machines but can be used on a number of other manufacturers equipment. Exhaustive testing programmes have been developed solely to create a superior product that you can have complete confidence in. They deliver levels of performance that meet or exceed any published standards so that we can truly say:

"ELMO RIETSCHLE LUBRICANTS ARE YOUR LIQUID ASSETS"

Genuine Parts Provide Genuine Benefits

Not every vacuum pump has the same reaction towards lubricants. The temptation to source cheaper alternative vacuum pump oil can often lead to the wrong buying decision being made. The negative impacts of low quality lubricant are often not considered, resulting in poor performance, increased energy consumption and equipment damage. A costly mistake which often far outweighs the initial cost savings.

Elmo Rietschle, is synonymous with quality, performance and reliability, offering high quality vacuum pump lubrication technology. Our Vacuum pump oil is specially formulated to combat the harsh elements of compression while maximizing efficiencies and equipment longevity. Our specially designed vacuum pump oil and lubricants support the innovative extended warranties (Care3) and their use validates the machines owners warranty. No other lubricant can provide this protection for Elmo Rietschle equipment and their owners.

Oil_Bottles_PVI_Label_Group

- Higher equipment availability

- Reduced lifetime cost of ownership

- Reduce Maintenance Cost

- Extended oil life

- Reduced lubricant consumption

- Maintain energy efficiency and overall machine performance

- Maintain operating safety

- Help protect the environment

A Range Of Lubricants Designed To Meet The Needs A Variety Of Vacuum And Low Pressure Applications

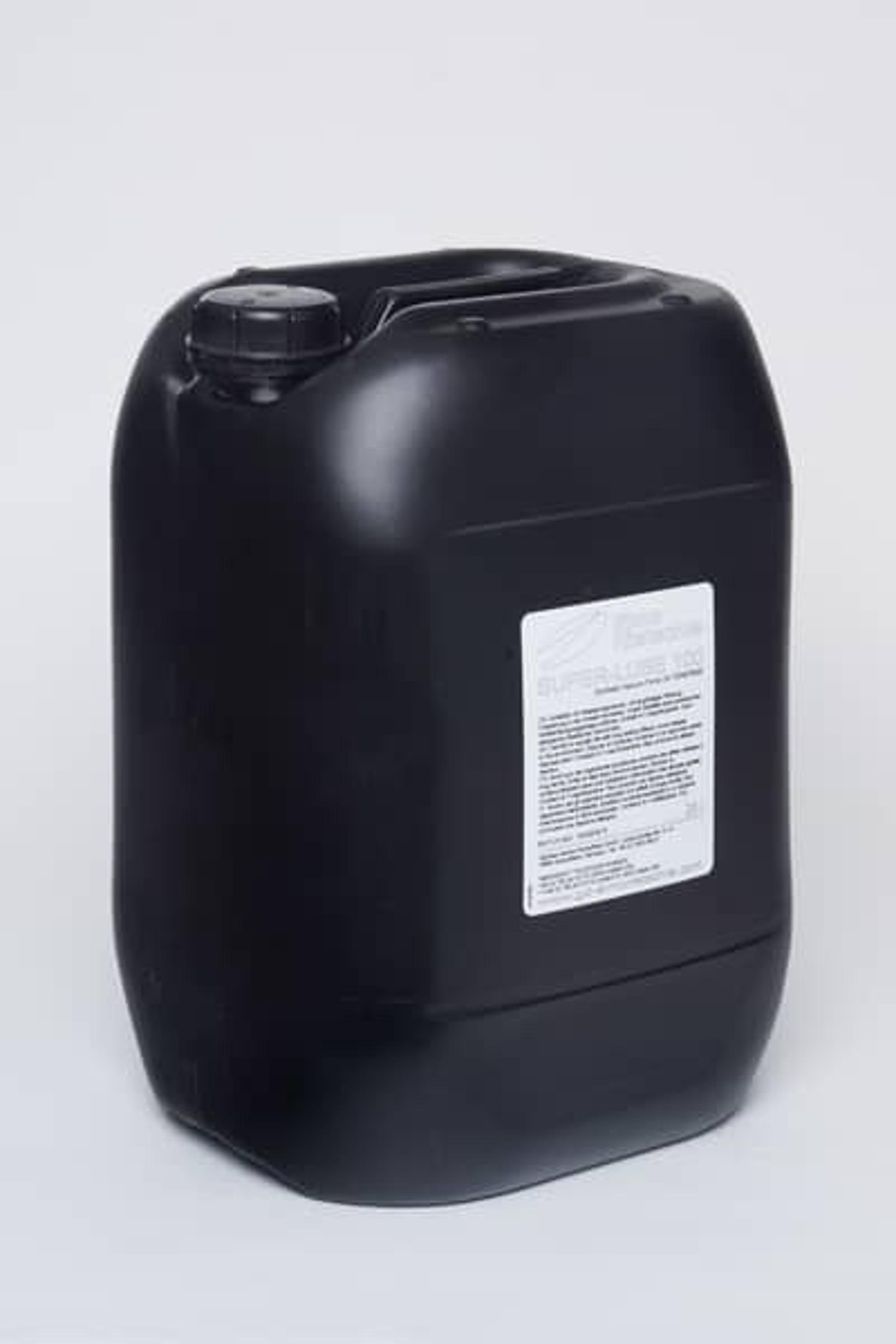

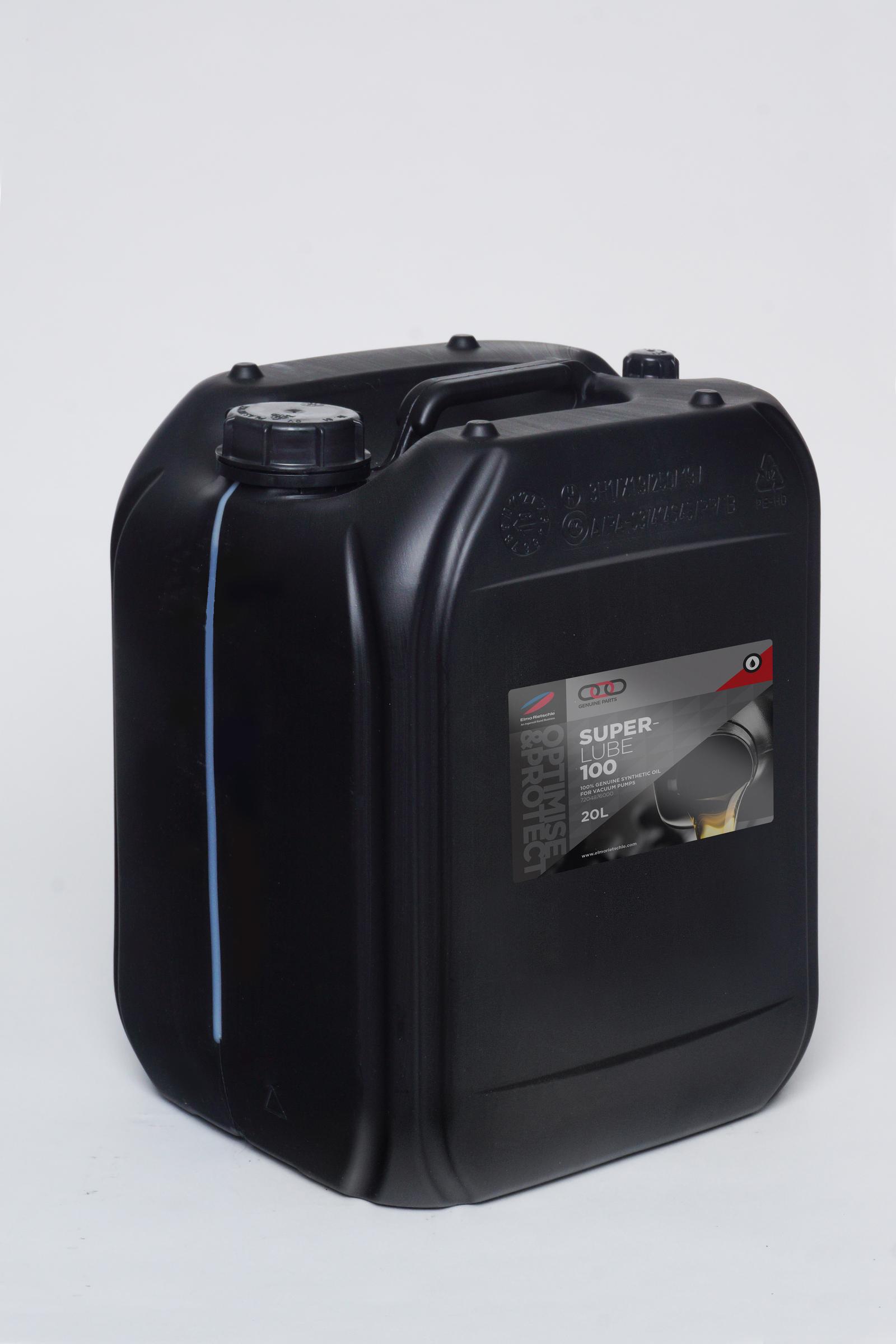

SUPER-LUBE

SUPER-LUBE is a synthetic vacuum pump oil. Made of organic ester base with a very good hydrolysis stability as well as high thermal and chemical stability. It is most suitable for high ambient temperatures.

Oil_Bottles_PVI_Label_Group

Properties/viscosity

 SUPER-LUBE 46

SUPER-LUBE 100

SUPER-LUBE 320

@ 40 °C, cSt

 45,5

 91

 320

@ 100 °C, cSt

 6.7

 10.6

 24

Pour Point °C

 -35

 -12

 -12

Flash Point °C

 235

 230

 270

Density g/cm3

 0.96

 0.96

 0.94

 Demulsibility @ 54°C,

ml oil/water/emulsion (min)

 40/38/2 (<30)

 39/38/3(<60)



Copper Strip Corrosion,

3 hrs @ 100°C

 1A

1A

MULTI-LUBE

MULTI-LUBE is a mineral vacuum pump oil according to DIN 51506; Group VCL.

It has a high ageing stability with a good feature of corrosion protection and efficient water separation.

Oil_Bottles_PVI_Label_Group

Properties/viscosity



MULTI-LUBE 32

MULTI-LUBE 46

MULTI-LUBE 100

MULTI-LUBE 320

@ 40 °C, cSt

32

43

95

299

@ 100 °C, cSt

5.7

6.7

10.7

23

Pour Point °C

-36

-12

-12

-6

Flash Point °C

230

230

265

288

 Density g/cm3

0.87



0.87

0.88

0.89

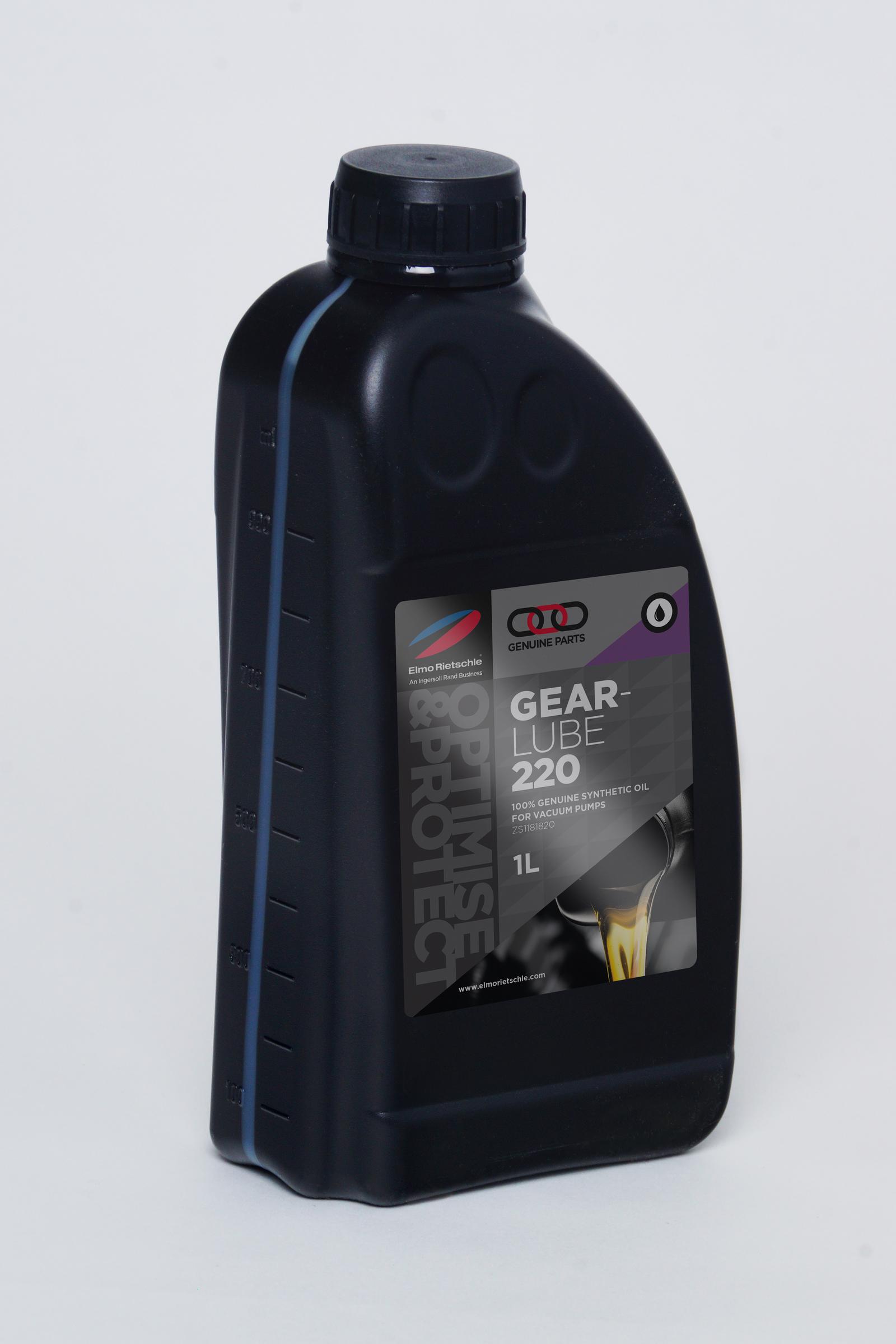

GEAR-LUBE

GEAR-LUBE is a synthetic bearing and gear oil of PAO base.

This product is suitable for both high and low ambient temperature applications because of its excellent viscosity temperature characteristics

Oil_Bottles_PVI_Label_Group

Properties/viscosity



GEAR-LUBE 150

GEAR-LUBE 220

@ 40 °C, cSt

150

223

@ 100 °C, cSt

19

26.1

Pour Point °C

 -45

-45

Flash Point °C

 270

 240

Density g/cm3

0.84

 0.84

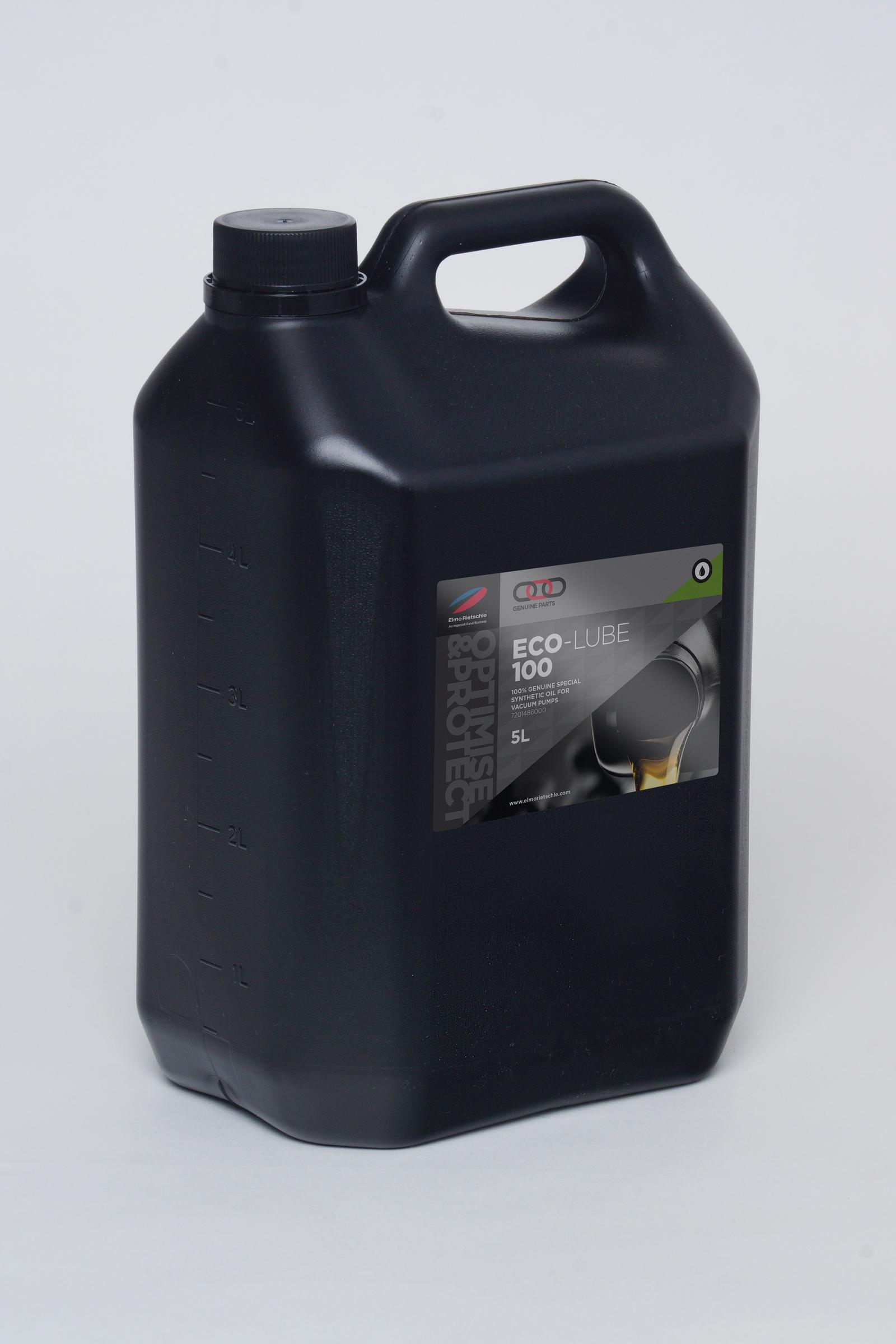

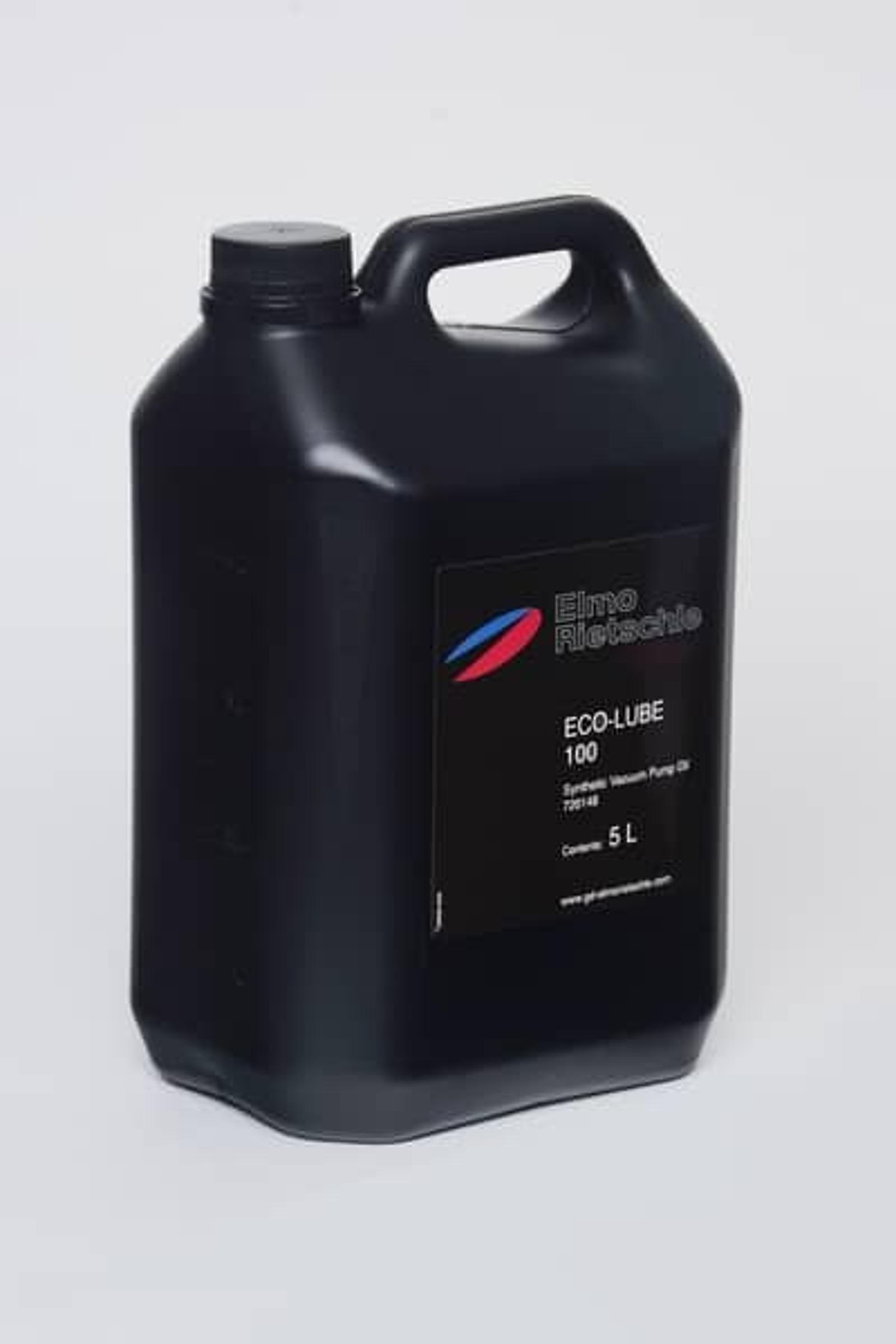

ECO-LUBE

ECO-LUBE is a special synthetic lubricant for vacuum pumps.

Developed from the outset for use in the food and pharmaceutical industries to fulfil the requirements as well as the definitions at FDA 21 CFR 178.3570 and USDA H-1. It is Halal and Kosher Certified.

Properties/viscosity



ECO-LUBE 100

@ 40 °C, cSt

100

@ 100 °C, cSt

12.9

Pour Point °C

-50

Flash Point °C

240

Density g/cm3

0.84

Oil_Bottles_PVI_Label_Group

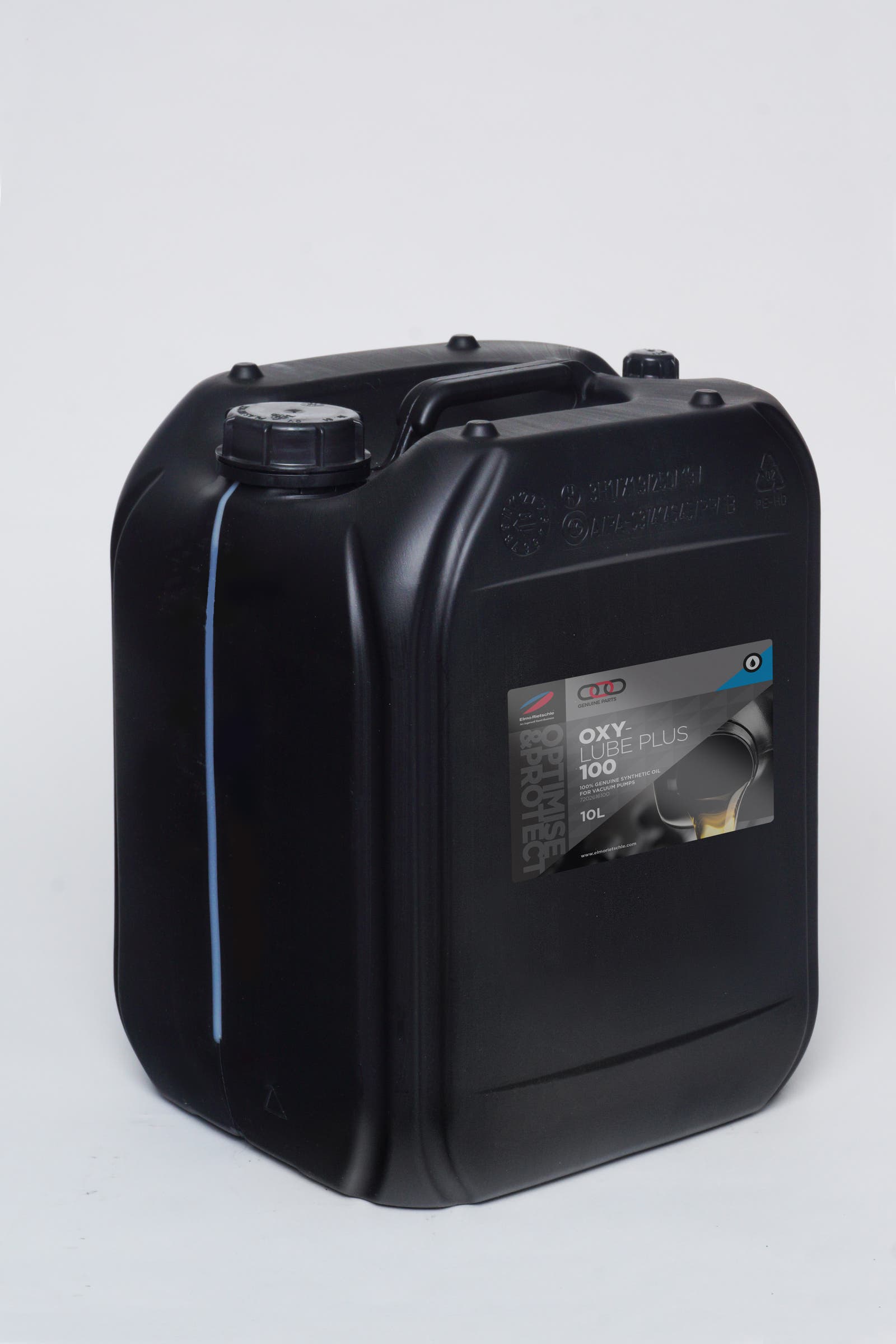

OXY-LUBE

OXY-LUBE is a synthetic vacuum pump lubricant

Compatible with oxygen. The oil is approved by BAM.

Properties/viscosity



OXY-LUBE 100

 @ 40 °C, cSt

 85

 @ 100 °C, cSt

9.8

 Pour Point °C

-20

 Flash Point °C

230

 Density g/cm3

0.92

Oil_Bottles_PVI_Label_Group
