Our vacuum pump oil is designed for Elmo Rietschle machines but can be used on a number of other manufacturers equipment. Exhaustive testing programmes have been developed solely to create a superior product that you can have complete confidence in. They deliver levels of performance that meet or exceed any published standards so that we can truly say:
"ELMO RIETSCHLE LUBRICANTS ARE YOUR LIQUID ASSETS"
Not every vacuum pump has the same reaction towards lubricants. The temptation to source cheaper alternative vacuum pump oil can often lead to the wrong buying decision being made. The negative impacts of low quality lubricant are often not considered, resulting in poor performance, increased energy consumption and equipment damage. A costly mistake which often far outweighs the initial cost savings.
- Higher equipment availability
- Reduced lifetime cost of ownership
- Reduce Maintenance Cost
- Extended oil life
- Reduced lubricant consumption
- Maintain energy efficiency and overall machine performance
- Maintain operating safety
- Help protect the environment
- Breakdown of the lubricant and its ability to protect the pumps critical components i.e. bearings
- Oxidation / varnishing
- Increased energy consumption
- Higher risk of catastrophic equipment failure
- Increased condensation
- Swelling or cracking of air system seals / seal material
- Lost production time whilst expensive repairs are carried out
Vacuum pump oil and lubricants provide four basic needs to your equipment, these are:

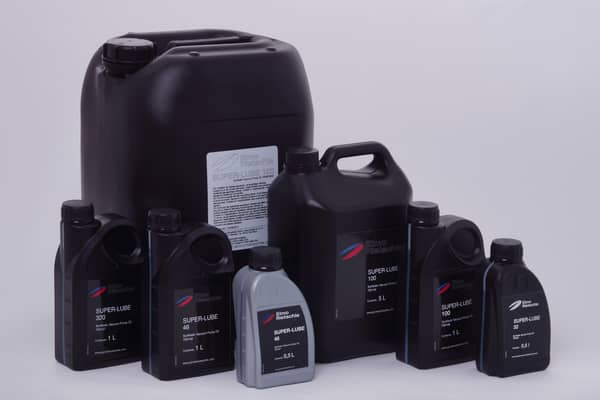

SUPER-LUBE is a synthetic vacuum pump oil. Made of organic ester base with a very good hydrolysis stability as well as high thermal and chemical stability. It is most suitable for high ambient temperatures.
|SUPER-LUBE 46||SUPER-LUBE 100||SUPER-LUBE 320|
|@ 40 °C, cSt||45,5||91||320|
|@ 100 °C, cSt||6.7||10.6||24|
|Pour Point °C||-35||-12||-12|
|Flash Point °C||235||230||270|
Demulsibility @ 54°C,
ml oil/water/emulsion (min)
Copper Strip Corrosion,
3 hrs @ 100°C

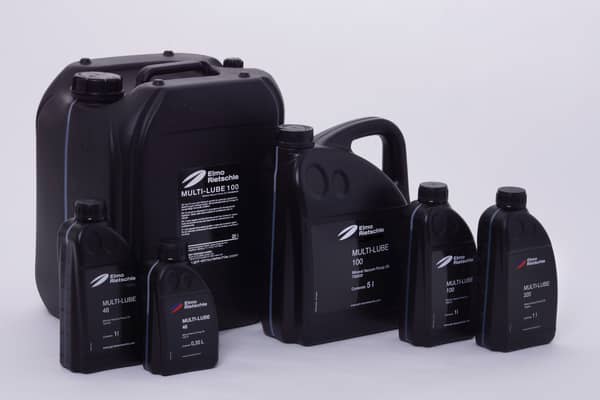

MULTI-LUBE is a mineral vacuum pump oil according to DIN 51506; Group VCL.
It has a high ageing stability with a good feature of corrosion protection and efficient water separation.
|MULTI-LUBE 32||MULTI-LUBE 46||MULTI-LUBE 100||MULTI-LUBE 320|
|@ 40 °C, cSt||32||43||95||299|
|@ 100 °C, cSt||5.7||6.7||10.7||23|
|Pour Point °C||-36||-12||-12||-6|
|Flash Point °C||230||230||265||288|

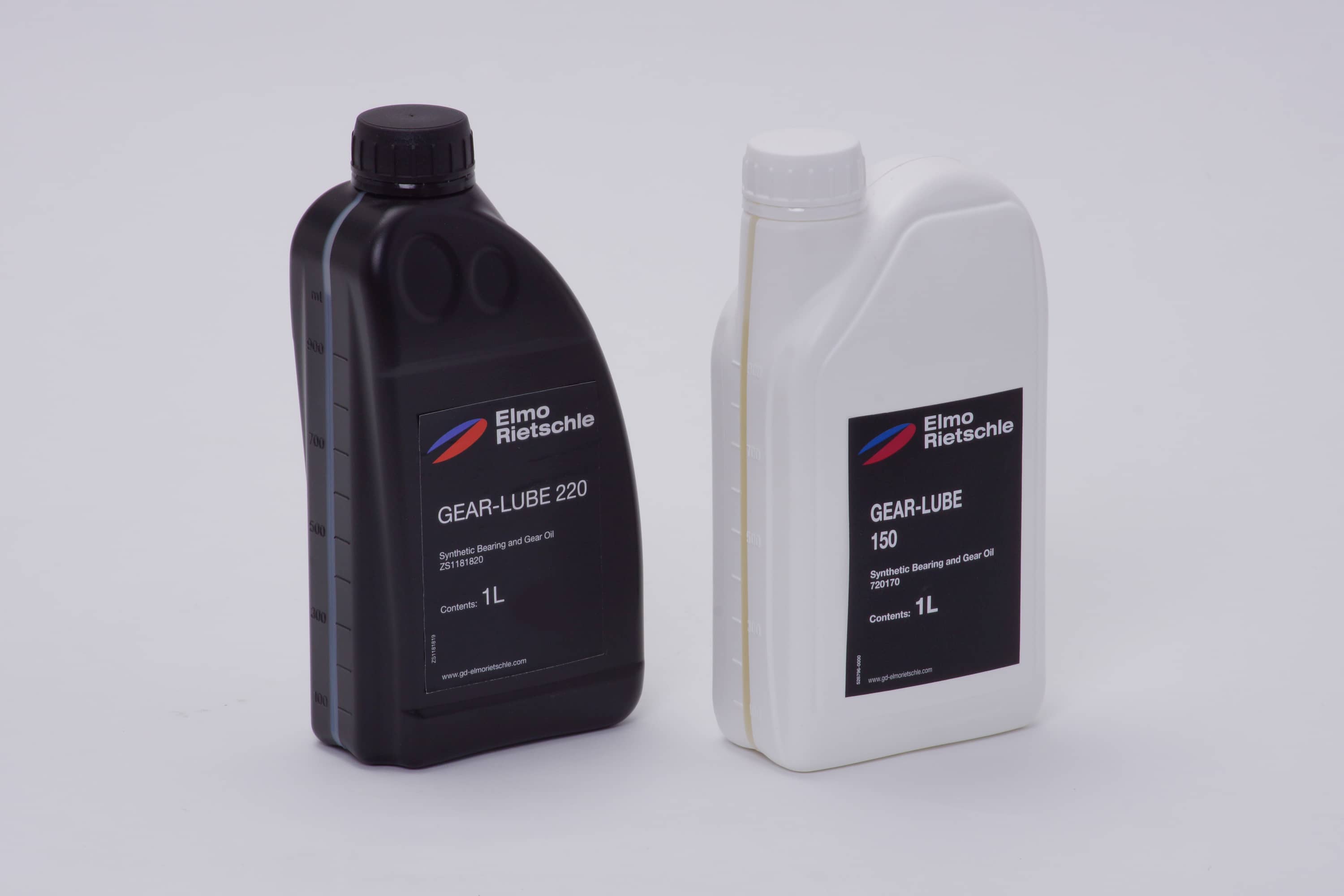

GEAR-LUBE is a synthetic bearing and gear oil of PAO base.
This product is suitable for both high and low ambient temperature applications because of its excellent viscosity temperature characteristics
|GEAR-LUBE 150||GEAR-LUBE 220|
|@ 40 °C, cSt||150||223|
|@ 100 °C, cSt||19||26.1|
|Pour Point °C||-45||-45|
|Flash Point °C||270||240|

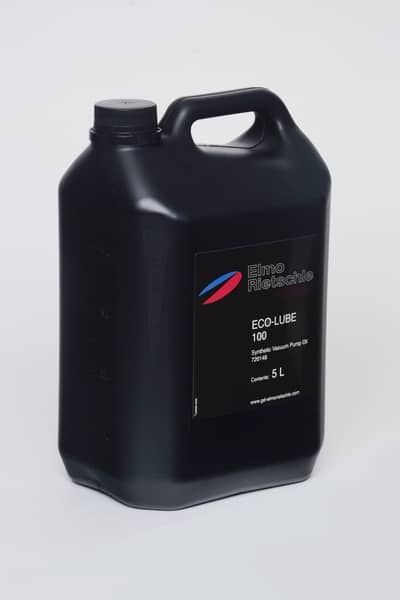

ECO-LUBE is a special synthetic lubricant for vacuum pumps.
Developed from the outset for use in the food and pharmaceutical industries to fulfil the requirements as well as the definitions at FDA 21 CFR 178.3570 and USDA H-1. It is Halal and Kosher Certified.
|@ 40 °C, cSt||100|
|@ 100 °C, cSt||12.9|
|Pour Point °C||-50|
|Flash Point °C||240|

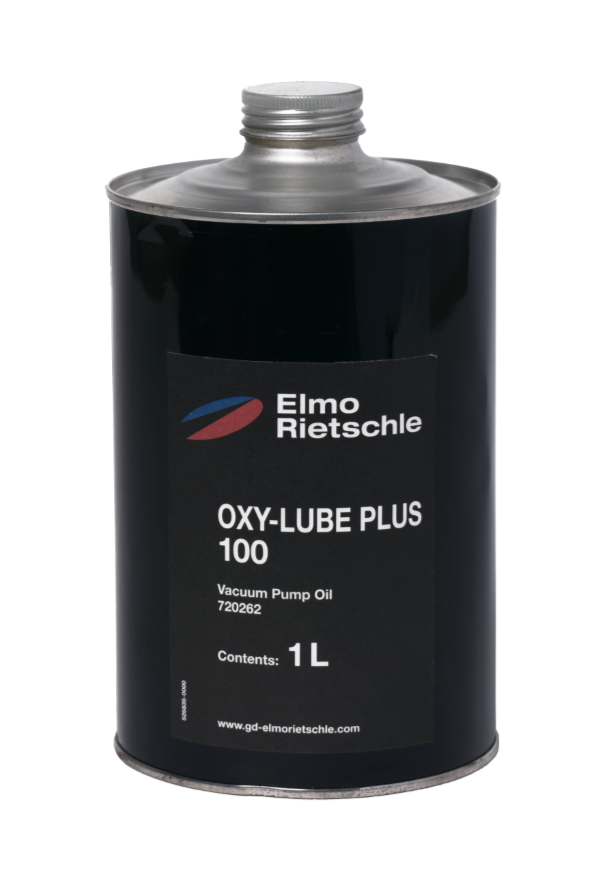

OXY-LUBE is a synthetic vacuum pump lubricant
Compatible with oxygen. The oil is approved by BAM.
|@ 40 °C, cSt||85|
|@ 100 °C, cSt||9.8|
|Pour Point °C||-20|
|Flash Point °C||230|
