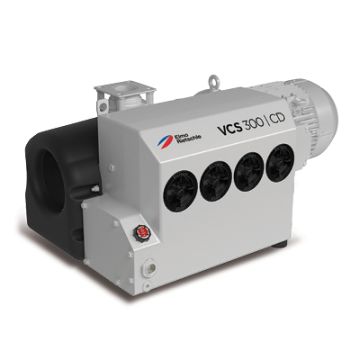

VCS 200 VCS 300 Rotary Vane Vacuum Pump from Elmo Rietschle
VCS 200 VCS 300 Rotary Vane Vacuum Pump from Elmo Rietschle
Back to the product list

V-VCS Oil Lubricated Rotary Vane Vacuum Pumps

An Engineered Evolution

The latest evolution in rotary vane design has arrived with the new VCS range in the Elmo Rietschle V-Series. With volumes capacity starting from 100 m3/hr up to 360 m3/hr. The new VCS has been developed to improve the overall performance of this tried and tested rotary vane vacuum pump technology. This evolutionary design provides our lowest cost of ownership for an oil lubricated rotary vane vacuum pump, whilst weight, noise and size reductions make it easily adaptable and retrofitable.

Contact Us
Request a Quote Request Service Parts or Support
Share

Advantages at a glance

Our evolutionary new design offers:

  • Reduced size and weight
  • Lower heat and noise emissions
  • Lower lifetime costs with a reduction in filter requirements with no drop in oil particulate removal whilst consequently reducing maintenance requirements
  • Reduced oil consumption also combines to make this machine one our most eco-friendly oil lubricated machines available
  • Design for the OEM market, the new VCS model can be easily retrofitted into most machines
Line drawing of VCS Rotary Vane Vacuum Pump

Technical Features

VCS Technical Information:

  • Volume flow capacities ranging from 100 to 360 m3/hr
  • Ultimate vacuum 0.5 mbar (abs.)
  • Noise emissions as low as 67 dB(A)
  • Weight without motor 100 kg
  • IE3 and IE4 motor variants are available including 4 kW, 5.5 kW and 7.5 kW as required
  • Fitted as standard with flange motor
  • Bearings on both sides of the rotor
  • Oil/air heat exchanger, fine mesh filter, vacuum non-return valve on suction side, gas ballast valve, protection cover and oil separator are standard
  • XD-Versions with high water vapour tolerance and high resistance to solvents are also available.
