Rotary Vane Pumps and Compressors

V-Series - Rotary Vane Vacuum Pumps and Compressors

Oil Lubricated Rotary Vane Vacuum Pumps

Our oil lubricated rotary vane vacuum pumps are used in a wide range of industrial applications. We offer the largest range of oil flooded vacuum technology for industrial vacuum operation.

Features

  • Long vane life
  • Low noise level
  • Easy to service
  • High water vapor tolerance
  • Oxygen conveying pumps available
  • XD-Versions with increase vapor tolerance and high resistance to solvents also available



Product Overview: Oil Flooded Rotary Vane Vacuum Pumps

V-VGD

Oil flooded rotary vane vacuum pump with capacities from 6 to 11 cfm (10 to 24 m³/h), reaching an ultimate vacuum of up to 29.86 inHg (gauge) [2 mbar (abs.)]. This needs little space thanks to its overhung rotor design and integral motor. It is fitted as standard with a fine mesh filter, vacuum non-return valve and oil separator. This pump is ideal for any environment as it is very quiet running.

V-VCB

Oil flooded rotary vane vacuum pump with capacities ranging from 12 to 16 cfm (20 to 26.5 m³/h), and an ultimate vacuum of 29.86 inHg (gauge) [2 mbar (abs.)]. Designed especially for installation into small vacuum packaging machines. Features a flange mounted motor, bearings on both sides of the rotor and air cooling. Fitted with a fine mesh filter, vacuum non-return valve and oil separator.

V-VCE

Oil flooded rotary vane vacuum pumps with capacities ranging from 15 to 29 cfm (25 to 30 m³/h); V-VCE at 29.62 inHg (gauge) [10 mbar (abs.)]; flange mounted motor, bearings on both sides of the rotor, air cooling. Fitted as standard with fine mesh filter, vacuum non-return valve, gas ballast valve and oil separator.

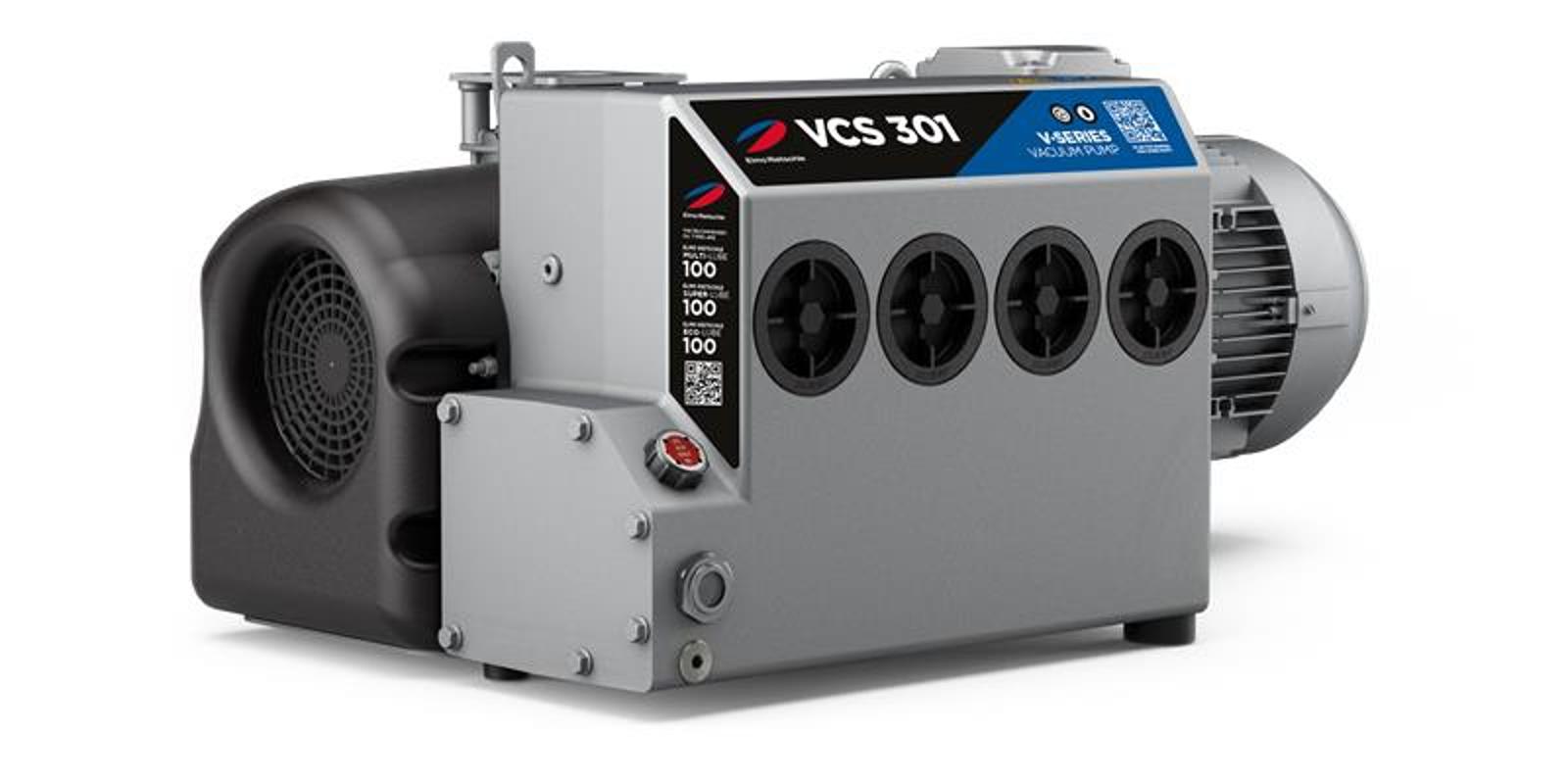

V-VC / V-VCS

Oil flooded rotary vane vacuum pump with capacities ranging from 30 to 903 cfm (40 to 1,535 m³/h), and an ultimate vacuum of 29.91 inHg (gauge) [0.5 mbar (abs.)]. Flange mounted motor, bearings on both sides of the rotor, oil/air heat exchanger. All models include aluminum alloy vanes, back pressure gauge, gas ballast valve(s), non-return valve and easy-access replaceable oil separators. Sizes of 400 m³/h and above include 5 micron paper inlet filter(s) and double-walled cylinder construction.

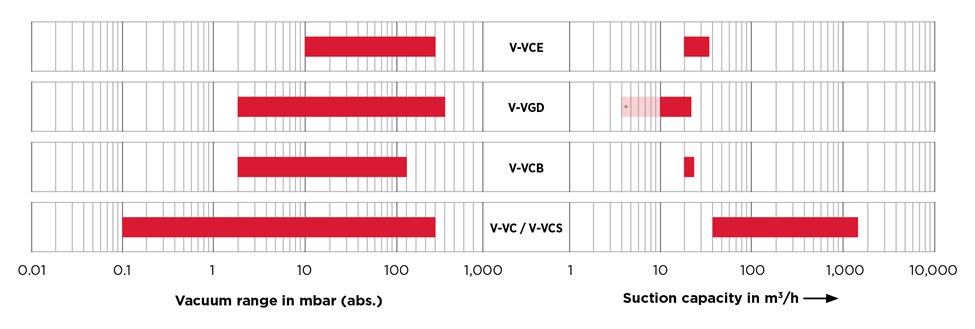

Performance & Technical Specifications: Oil Flooded Rotary Vane Vacuum Pumps



Applications

Oil lubricated rotary vane vacuum pumps are well suited for a variety of industries and applications including:

  • Environmental Engineering
  • Food Processing
  • Packaging
  • Pneumatic Conveying
  • Woodworking
  • And Industrial applications including drying, dust extraction, industrial furnaces and vacuum hold down



How it Works: Oil Lubricated Rotary Vane Pump Working Principle

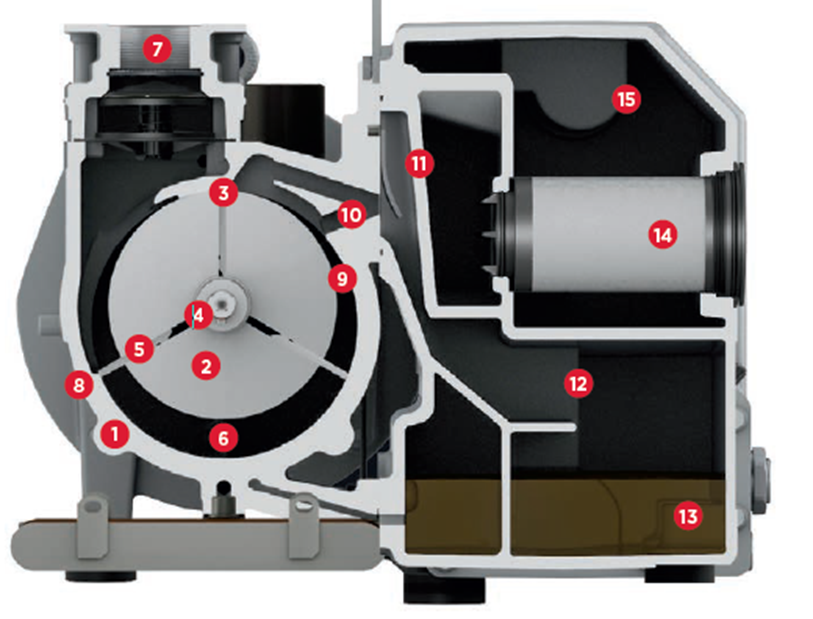

Pressure increase by volume reduction is the principle behind rotary vane operation. This design offers excellent service for pressure, vacuum or a combination of both. In a cylindrical housing (1) a rotor (2) is positioned eccentrically so that it is on the top almost touching the cylinder (3). Rotor vanes (5) are positioned inside rotor slots (4). When the rotor starts turning, due to centrifugal force from the rotors rotating, the vanes are thrown out and slide against the internal surface of the cylinder. In this way a cell (6) is formed between two vanes with a volume that changes constantly during rotation. Air enters from the inlet port (7) into a cell until the rear blade reaches the far end of the inlet port (8). At this point the cell (6) has achieved its maximum air volume. As the cell then moves away from the port its volume (9) becomes smaller and smaller, the air is thus compressed and the pressure rises. Some models are fitted with outlet valves (11) next to the outlet port (10) which stop the backflow of discharged air when the maximum pressure has been reached.

DE-OILING ONCE THROUGH VACUUM PUMPS

After its passage through outlet port (10) and outlet valves (11), the oil-gas mixture reaches the de-oiling pump chamber (12) where the oil is separated from the gas in two steps. Larger oil drops are mechanically separated from the gas and are eventually deposited in the oil sludge recipient (13). The remaining oil gas mixture is then taken through fine filter elements (14) which separate even the smallest oil particles. These are then reintroduced through an oil suction pipe into the pump‘s oil circuit. The virtually oil free gas can be let outside either through the air outlet (15) or through other hose or piping arrangements.

Elmo Rietschle de-oiling process through vacuum pumps

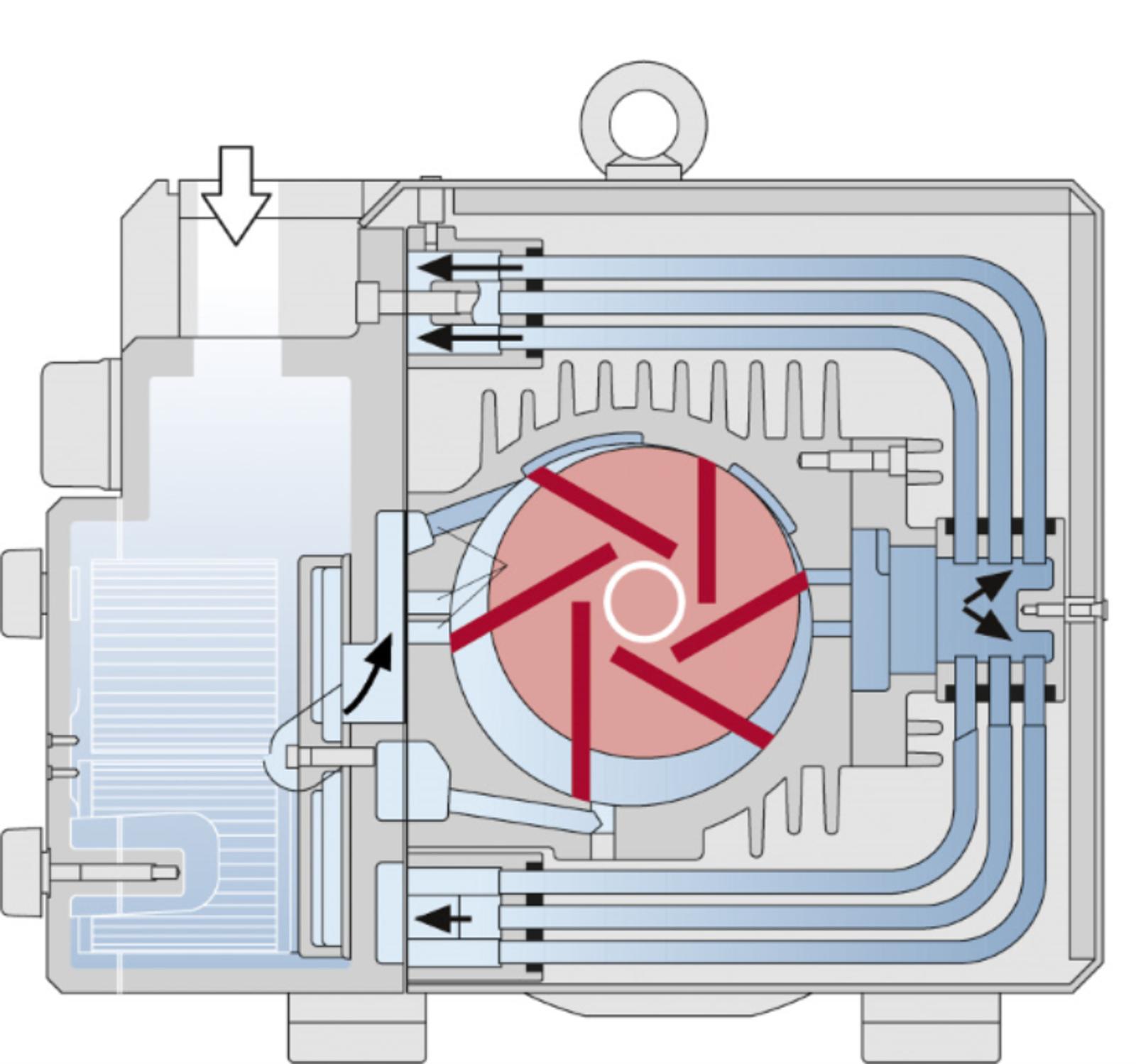

Dry Running, Oil-Less Rotary Vane Vacuum Pumps, Compressors, and Pressure-Vacuum Pumps

Our eco-friendly dry running rotary vane pumps are well suited for industrial vacuum, pressure and combined pressure and vacuum applications.

Features

  • Low noise level
  • Easy to operate
  • Dry running, environmentally friendly
  • Process safe & reliable
  • Robust and economical
  • Maintenance friendly
  • Many accessories available

Product Overview: Oil-Less Rotary Vane Vacuum Pumps

V-VTE

Capacities ranging from 2 to 7 cfm, ultimate vacuum 25.5 inHgV. Compact, easy to install. Very low noise level and corrosion resistant rotors, hose connection and exhaust silencer as standard.

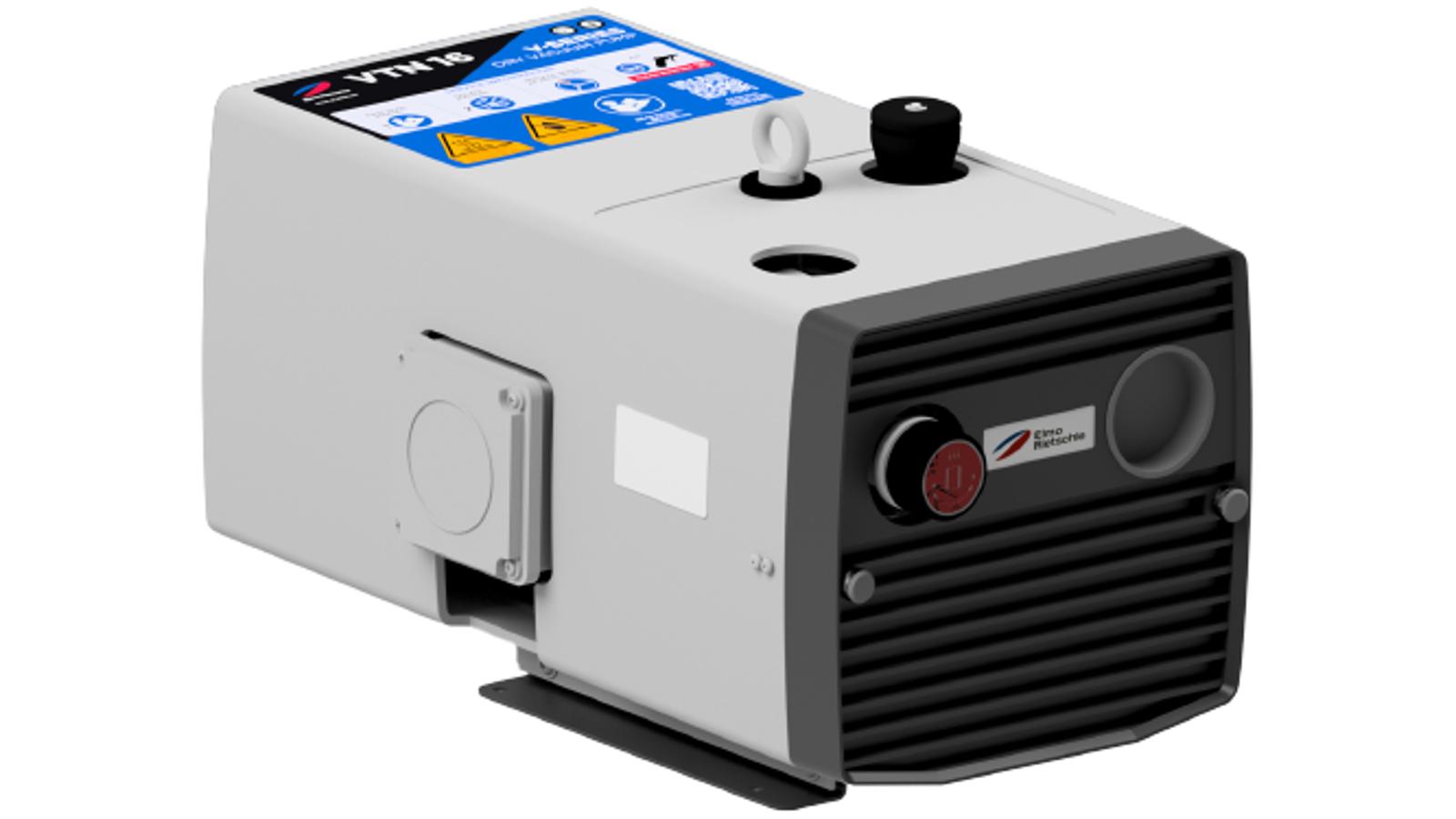

V-VTN

Capacities from 8 to 30 cfm, ultimate vacuum of 25.5 inHgV. Sound cover reduces noise level, enhances cooling and protects operators from touching hot surfaces. Comes with built-in suction filters and vacuum valves and low vibration, easy to operate, install and service.

V-VTR

Capacities from 39 to 91 cfm, ultimate vacuum of 25.5 inHgV. It features bearings on both sides of the rotor, and flange mounted motor with bolt coupling. High efficiency and low noise operation. Sound cover allows a ducted cooling air outlet either from one side only or from both front and back. (60–80 size) Easy to operate and service.

Product Overview: Oil-Less Rotary Vane Vacuum Pumps

V-DTE

Capacities from 2 to 7 cfm, pressure up to 14.5 psig. Compact design, easy to build into machines, very low noise level. Hose connector, inlet silencer and pressure relief valve fitted as standard.

V-DTR

Capacities from 36 to 91 cfm, pressure up to 22 psig for continuous operation and up to 32 psig for intermittent operation. Bearings on both sides of the rotor, and flange mounted motor with bolt coupling. High efficiency and low noise operation. Sound cover allows a ducted cooling air outlet, from one side. Easy to operate and service.

Product Overview: Oil-Less Rotary Vane Pressure-Vacuum Pumps

V-KTR

Capacities from 28 to 95 cfm, vacuum up to 18 inHgV, pressure up to 10 psig. High efficiency and low noise level. Sound cover allows a ducted cooling air outlet. Easy to operate and service.

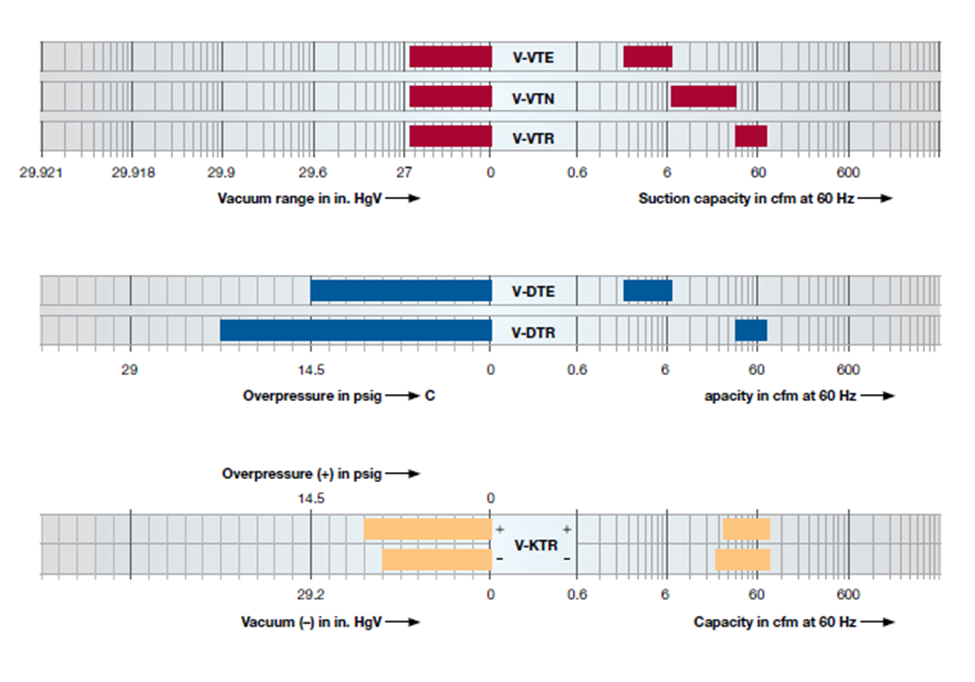

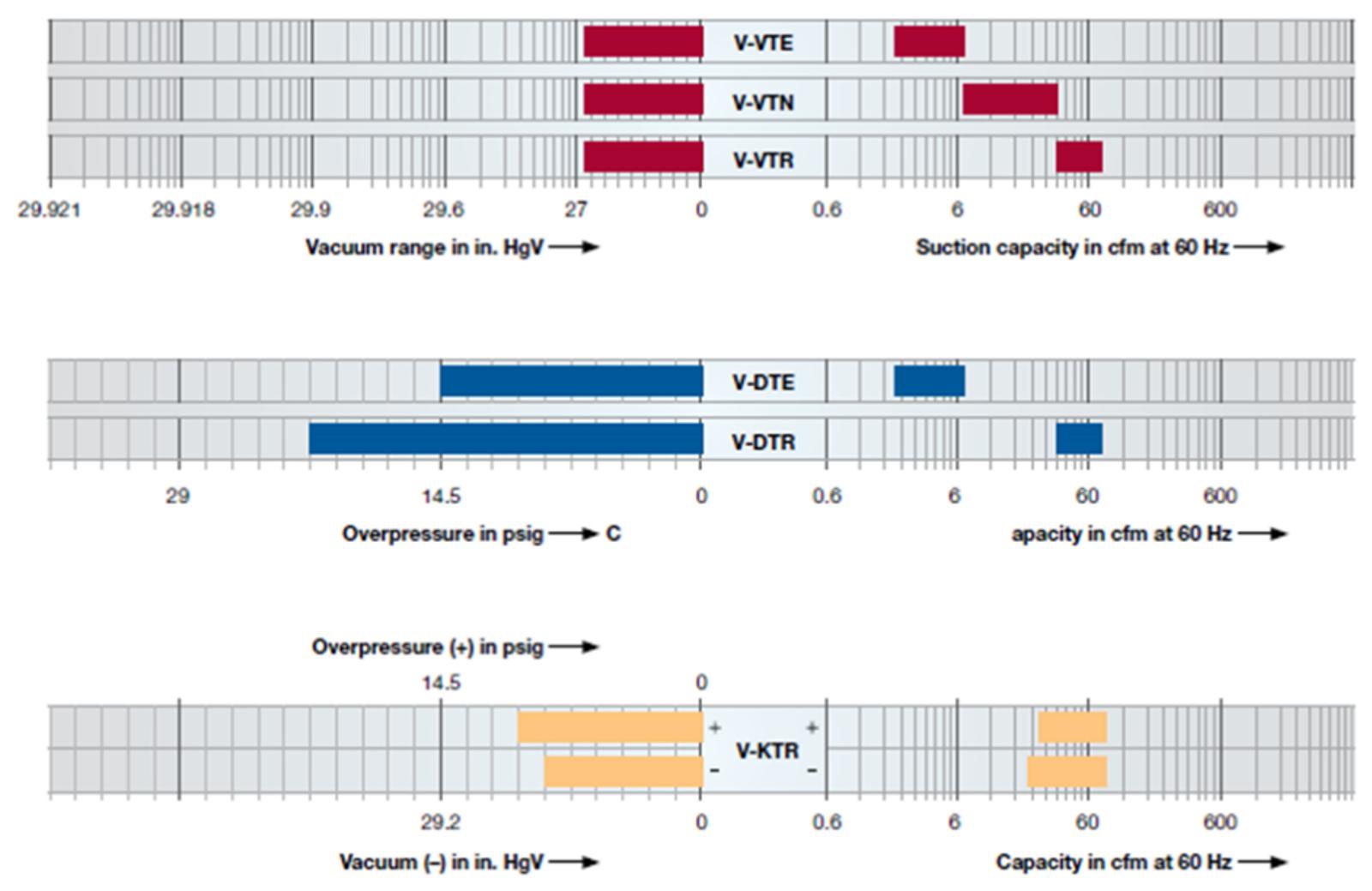

Performance & Technical Specifications – Oil-Less Rotary Vane Vacuum Pump, compressor and pressure vacuum products

Oil-Less Rotary Vane Vacuum Pump Air Map

Applications

Oil-less, dry running rotary vane vacuum pumps, compressors, and pressure-vacuum pumps are well suited for a variety of industries and applications including:

  • Environmental Engineering
  • Food Processing
  • Packaging
  • Printing
  • Woodworking
  • And Industrial applications including drying, dust extraction, industrial furnaces and vacuum hold down
