Elmo Rietschle supports Zhongshan Hospital to create a true medical vacuum system

Gardner Denver has teamed up with the endoscopic team at Shanghai’s Zhongshan Hospital to deliver an innovative vacuum pump solution, using a maintenance-free, low-energy rotary-vane pump from its Elmo Rietschle range.

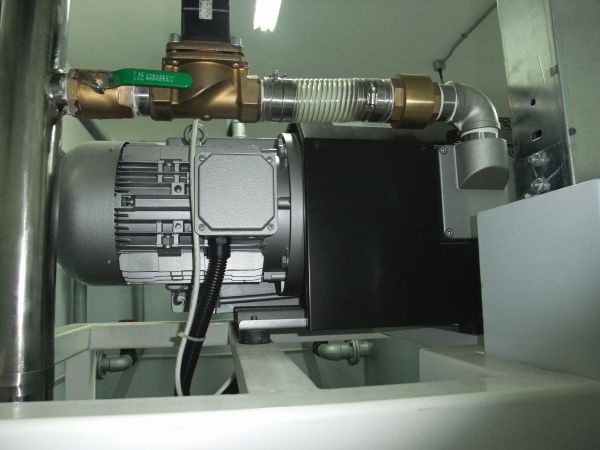

Elmo Rietschle Technicial in the Hospital Facility

The application in detail

Endoscopic surgery is a highly-skilled field and places specific demands on the hospital’s central vacuum system, requiring a solution that provides high reliability, simple maintenance and high environmental performance.

At the Zhongshan Hospital in Shanghai, the ‘Zhongshan Endoscope’ medical institution is renowned both at home and abroad, offering the most advanced equipment in the country, treating the largest number of patients each year, and providing the most comprehensive medical treatment program.

Zhongshan Hospital


Location: Shanghai, China


Application: Vacuum pump solution for endoscopic surgery


Solution: Elmo Rietschle maintenance-free, low-energy rotary-vane pump

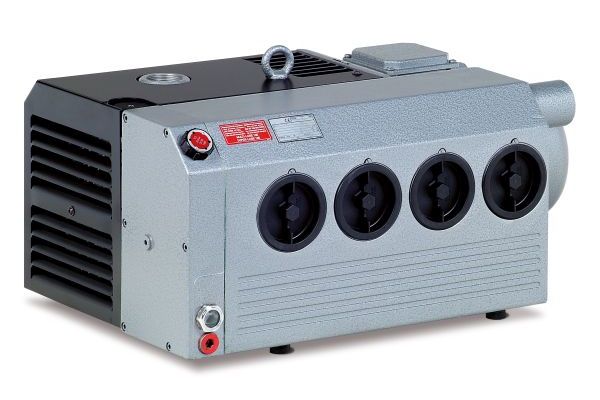

Elmo Rietschle V-VC Blowers

During more than ten years of partnership with the hospital, Gardner Denver’s Shanghai vacuum specialists have worked to create a comprehensive medical vacuum system that is equipped for the rigors of stringent hygienic and environmental standads.

Designed to meet the specific requirements of the institution, the Elmo Rietschle solution offers a compact design, continuous and stable vacuum, high reliability, low noise levels and no water pollution.

Contact Our Experts

The low-energy, oil-lubricated rotary vane vacuum pump can reach 1200 m³/hr. The proven design guarantees stable and reliable operation and delivers high efficiency and low energy consumption, alongside simple maintenance, to provide the required levels of vacuum for the operating room.

The pump’s operation is extremely smooth, with low noise levels with the bearings running for up to 40,000 hours without replacement.

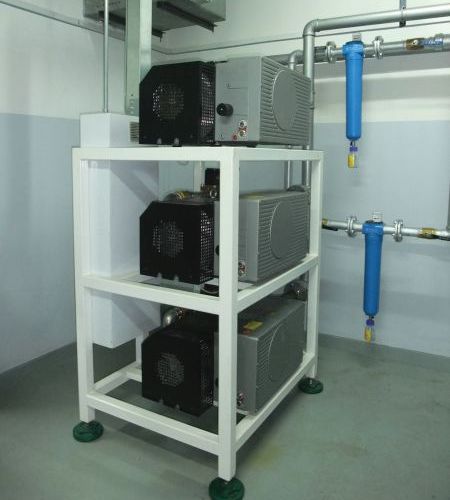

Elmo Rietschle Side Channel blowers stacked on the rack in a hospital facility for ventilators

Developing the solution

The Elmo Rietschle medical vacuum system includes vacuum suction, to absorb bodily fluids during surgery and an anaesthetic gas discharge system for the operating room. Using sophisticated electronic control, the anaesthetic exhaust gas is discharged through a vacuum pipeline to a sterilisation filter and then stored in a vacuum storage chamber.

In addition, the operating room’s dedicated anaesthesia gas discharge system is used to collect anaesthesia waste in the operating room. The system consists of a gas terminal, a vacuum line, a filter, a pressure control valve, a vacuum pump, an exhaust line and an electrical control cabinet.

Contact Our Experts

Other applications

Gardner Denver has more than 115 years of experience in the development and manufacture of vacuum and pressure technology.

The Elmo Rietschle team in China has accumulated extensive experience in medical vacuum solutions for the hospital ward and operating theatres, not only through its work with Zhongshan Hospital, but in various other institutions across the country.

Elmo Rietschle Side Channel Blower

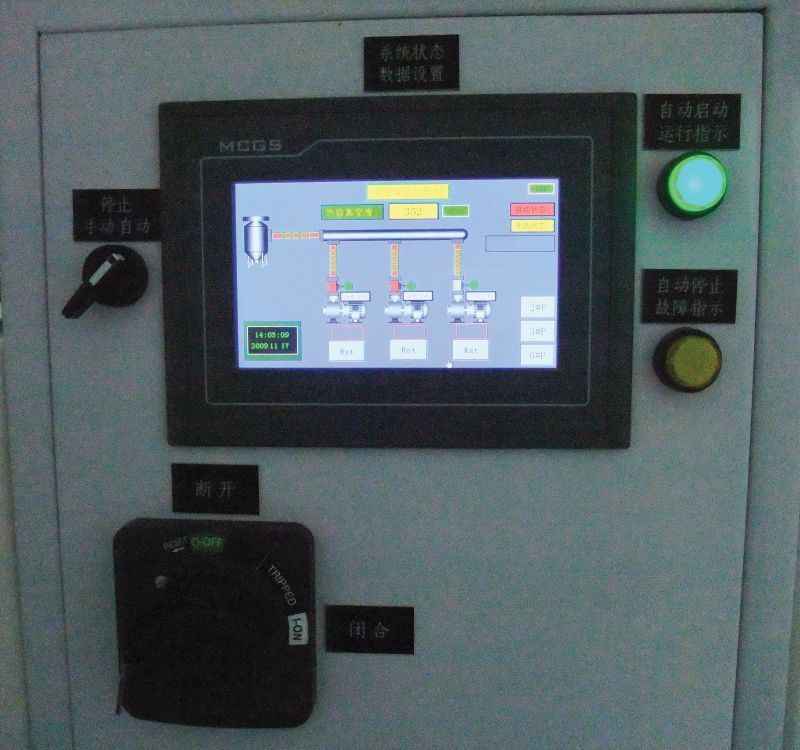

Control System for Elmo Rietschle Side Channel Blower in Hospital Facility

For example, the Shanghai Putuo District Central Hospital is equipped with an Elmo Rietschle maintenance-free claw pump. As well as offering high energy efficiency, the pump chamber has no oil and frictionless operation, and the service life is long, providing easy and maintenance-free operation.

At the Shanghai Renji Hospital, the operating room’s anaesthetic gas discharge system uses an Elmo Rietschle oil-free rotary vane vacuum pump with integrated suction gas filter for low noise and improved cooling performance. This prevents the operator from accidentally touching any hot surfaces while the pump is running.
